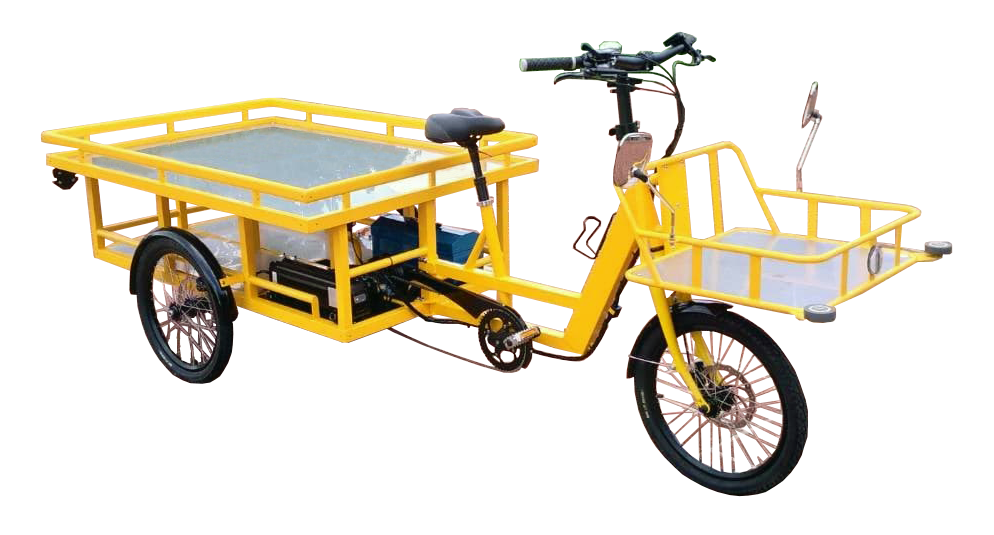

Model: TR-06E
 |
Electric Pedal-assisted Cargo Tricycle
| Motor |
48V 350W Brushless Hub Motor |
| Battery |
48V 17.5Ah Lithium (SAMSUNG or LG) |
| Charger INPUT |
AC100-240V 50/60Hz – 2.0A |
| Charger ONPUT |
54.6v 3.0A |
| Charging Time |
Approximate 6 hous fully recharged |
| Controller |
Digital logic integrated electrical system management |
| Display Meter |
Power ON/OFF, Speed and Battery Indicator, F & R Lights
Maximum Speed : 25 km/h |
| Maximum Speed |
25 km/h |
| Range Per Charge |
0-80KM depending on pedaling assistance level, loading, freuent stops/start-ups, tire pressure and road condition. |
| Climbing |
7º |
| Headlight |
48V LED, White |
| Taillight |
48V LED, Red |
Tricycle Specifications
| Fork & Frame |
20'' (406) |
| Front Carrier |
480mm(L) x 550mm(W) x 130mm(H) |
| Rear Carrier |
1400mm(L) x 960mm(W) x 100mm(H) |
| Wheelbase |
1700mm |
| Crank Set |
1/2'' x 3/32'' x 48T x 170mm |
| Tires |
20'' x 2.125 |
| Tubes |
20'' x 1.75/2.125 AV |
| Rims |
20'' x 36H x 14G |
| Brakes, Front & Rear |
Hydraulic Disc Brakes with Sensor Control Design with
Rotor ∮180mm in the front and ∮203mm on both rear wheels. |
| Brake Levers, L & R |
Both with Lock Device Mechanizm |
| Derailleur |
Shimano Rear Derailleur, 7 speed |
| Shifter |
Shimano Trigger Shifter, 7 speed |
| Cassette |
13-28T, 7 speed |
| Rear Axle |
Differential Gear with Sprocket 18T |
| Maximum Payload |
250 kgs (145kg on rear rack, 30kg on front rack, 75kg for rider) |
| Weight |
109 kgs with battery |
|
|
